Portable Handheld Digital Multimeter Auto Range 4000 Counts Lower Power Consumption

Name: Portable Handheld Digital Multimeter Auto Range 4000 Counts Lower Power Consumption
Brand: PEAKMETER
Price: 1 USD

Brand Name : PEAKMETER

Model Number : PM8213B

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 120mmx70.8x12.5mm Product Weight Approx. 86g

Dispaly : 4000 Counts

Function : Diode test

Frequency : 10Hz~100kHZ

Resistance : 400Ω~40MΩ

Capacitance : 50nF~100uF

Product Name : Handheld Digital Multimeter

Contact Now

Portable Digital Multimeter With High Precision And Auto Range

Feature of Portable Digital Multimeter

Automatic shutdown: About 30 minutes
Over range indication: Displays “OL”
Input polarity indication: It will display “-“ automatically
AC&DC voltage measurement
Frequency/duty ratio measurement
Capacitance and resistance measurement
Diode and continuity test

Specifications	Range	Accuracy
DC Voltage	4V/40V/400V/600V	±(1.0%+3)
AC Voltage	4V/40V/400V/600V	±(2.0%+5)
Resistance	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ	±(2.0%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz	±(2.0%+5)
Capacitance	50nF/500nF/5uF/50uF/100uF	±(5.0%+5)
Duty Ratio	0.1~99.9%	±(3.0%+5)
Features
Display	4000 counts
Frequency	100kHz
Resistance	100uF
Continuity	√
Diode Test	√
Low Battery Indication	√
Auto Power Off	√
General

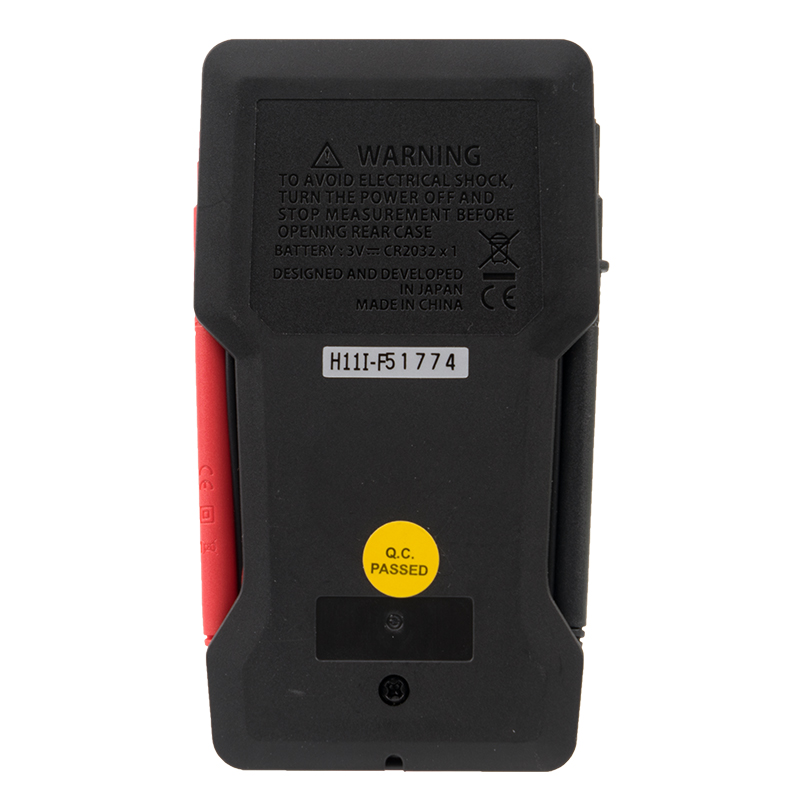

Power Supply	1*3.0V CR2032 Button Battery
Net weight	92g (battery is not included)
Gross weight	143g
Size	127mm73mm13mm
Safety Rating	EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

Description of Portable Digital Multimeter

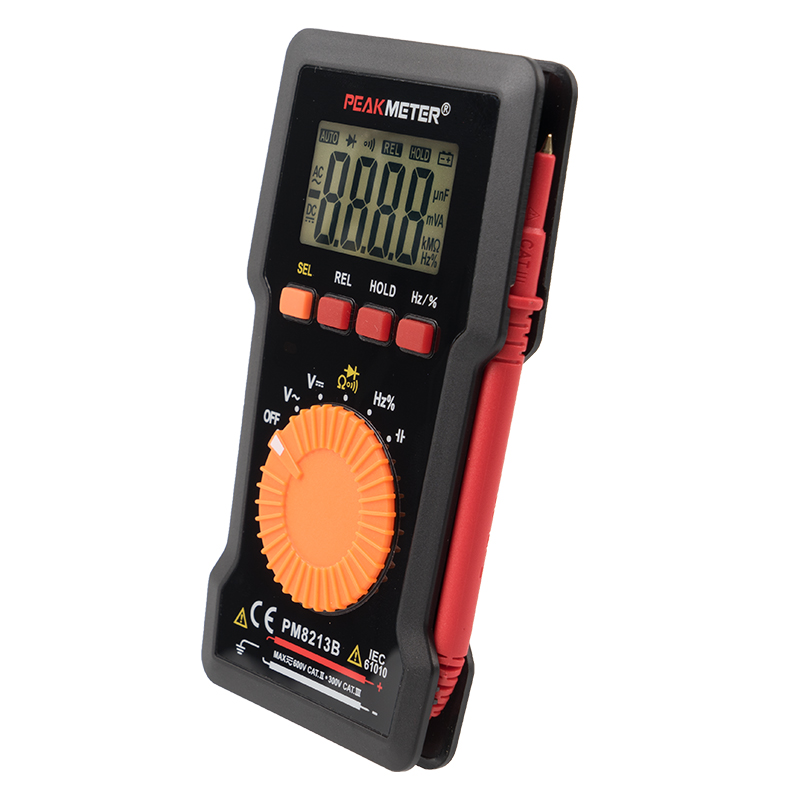

PM8213B is a small notebook-style digital multimeter that can be carried around. It is fully functional and can measure AC and DC voltage, resistance, capacitance, frequency and diode. This meter has a novel structure, the test pen is directly connected to the body, and can be stored on both sides of the meter; the power consumption is low, and it is powered by a 3V button battery. This is a cost-effective measuring instrument.

This instrument is designed and produced strictly according to safety standard IEC61010, and complies with dual insulation, over-voltage standard 300V CAT Ⅲ, 600V CAT Ⅱ and safety standard of pollution level 2.
This instrument is a portable laptop type digital multimeter. It is complete in function, stable in performance, high in precision and low in power consumption, with novel structure, safe and reliable, which is an idea measurement instrument for wide users.

Service

All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface), and delivery fee will be borne by the customer.
Material and service fee will be charged when warranty is expired, and delivery fee will be charged.
To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs.
Customer can refer the maintenance order to get more information.
