Mini Manual Ranging Multimeter , Electronic Pocket Digital Multimeter

Name: Mini Manual Ranging Multimeter Electronic Pocket Digital Multimeter
Brand: PEAKMETER
Price: 1 USD

Brand Name : PEAKMETER

Model Number : PM830L

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 138x69x31mm Product Weight Approx. 170g

Function 1 : Data Hold

Display : 2000 Counts

Function 2 : Continuity

Resistance : 200Ω~2MΩ

Function 3 : Diode Test

Product Name : Digital Multimeter

Contact Now

Data Hold Manual Range 2000 Counts Digital Meter With Mini Size

Feature of Mini Size Digital Multimeter

Fuse protection: F 250mA/ 25V
Display: LCD, 1999 counts, updates 2-3/sec
Overrange Indication: Only figure “1” on the display
Back Light
Hold button

Specifications	Range	Accuracy
DC Voltage	200mV/2V/20V/200V	±(0.5%+2)
	600V	±(0.8%+2)
AC Voltage	200V/600V	±(1.2%+10)
DC Current	20µA	±(1.2%+10)
	200µA/2mA	±(1.0%+3)
	20mA	±(1.0%+5)
	200mA	±(1.5%+5)
	10A	±(3.0%+10)
Resistance	200Ω/2kΩ/20kΩ/200kΩ	±(0.8%+2)
	2MΩ	±(1.0%+5)
Features
Display:2000 counts
Data Hold
Diode Test
hEF Test
Continuity
General
Power Supply	DC9V 6F22 battery
Net weight	197g (battery is not included)
Gross weight	339g
Size	145mm74mm44mm
Safety Rating	EN61010-1, EN61010-1-033, EN61326, CAT. Ⅲ 600V

Description of Mini Size Digital Multimeter

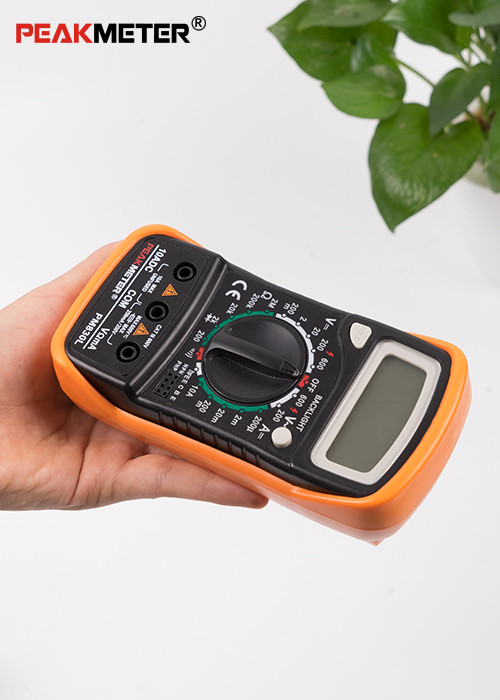

PM830L is a 2000 count basic Multi-meter which can measure AC/DC Voltage Values , DC Current Value, Resistance Value and the connectivity of metal cables. Its output voltage can light up most LED lights, and the Diode Passing Voltage Drop Function and the Triode Magnification Function are added as additional functions to PM830L.

This meter can measure 600v DC&AC voltage, 10A AC current, 2MΩ resistance, and diode test, transistor test, continuity test.
Removable soft rubber protective case to protect the body from collision. The rear shell is designed with a support frame, which is convenient for users to operate and read.

Mini Manual Ranging Multimeter , Electronic Pocket Digital Multimeter
