NCV Frequency Backlight Temperature Transistor Handheld Digital Multimeter
Features of Portable Digital Multimeter
- NCV, Continuity test
- Non-contact Voltage Detection
- Non-contact voltage induction zone
- Non-contact voltage light indicator
- AC/DC Voltage and Resistance Measurement
| Specifications | Range | Accuracy |
| DC Voltage | 2V/20V/200V | ±(0.5%+3) |
| 600V | ±(0.8%+5) |
| AC Voltage | 2V/20V/200V | ±(0.8%+3) |
| 600V | ±(1.0%+5) |
| Resistance | 2kΩ/20kΩ/200kΩ/2MΩ/10MΩ | ±(1.0%+3) |
| Features |
| Display | 2000 counts |
| Data Hold | √ |
| Continuity | √ |
| NCV | √ |
| Work Light | √ |
| Back Light | √ |
| General |
| Power Supply | 2*1.5V AAA batteries |
| Net weight | 158g (including batteries) |
| Gross weight | 189g |
| Size | 132mm*61mm*26mm |
| Safety Rating | EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V |
Product Description of Portable Digital Multimeter

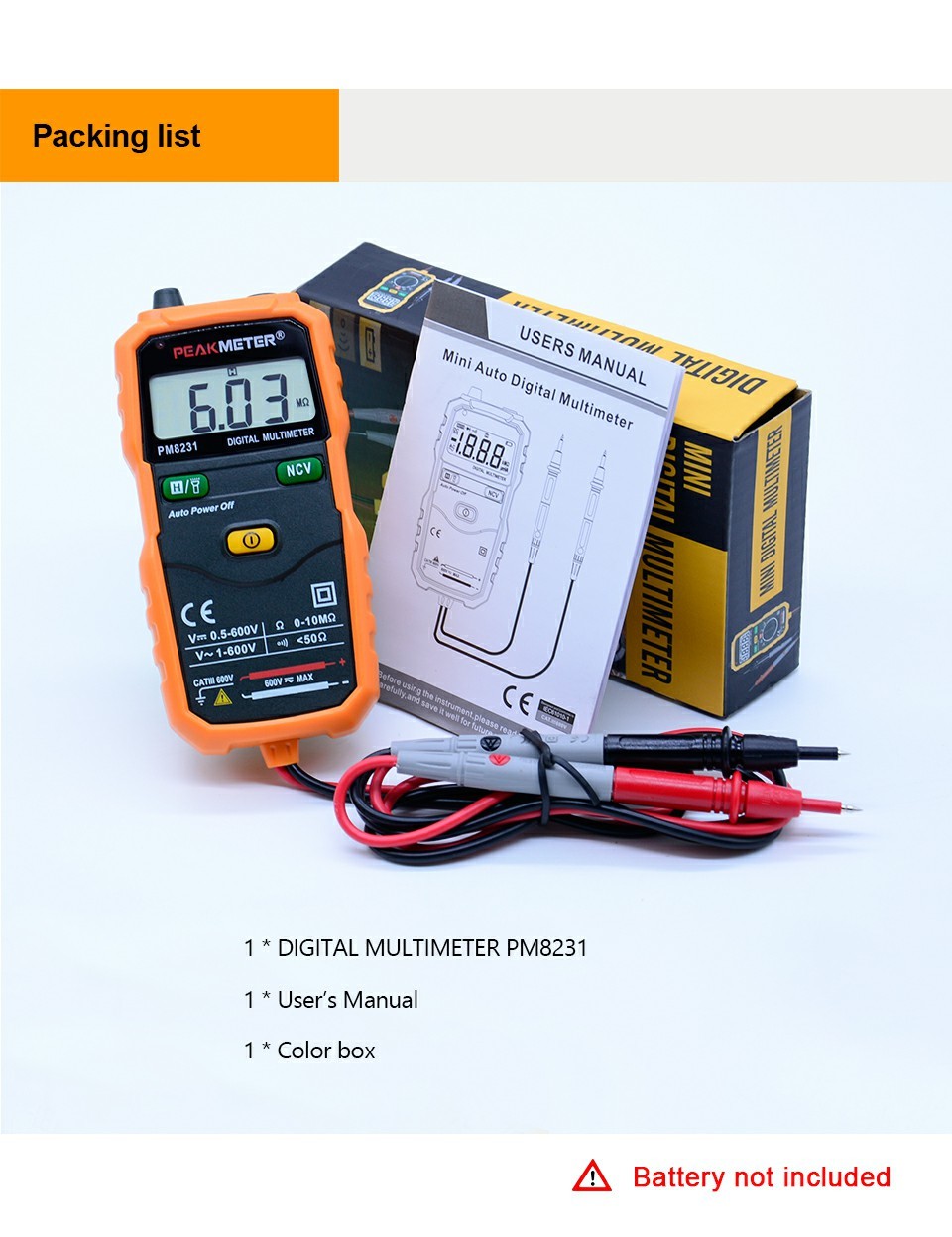

The PM8231 is a portable digital multimeter. It has stable performance, high precision, low power consumption, novel structure. Safe and reliable, it's an ideal measuring instrument. It can measure DC voltage, AC voltage, resistance and connectivity, with non-contact voltage detection function, timely remind the user to pay attention to operation safety, so it's more safe and rest assured for user to use.
- The instrument is a portable digital multimeter. It has stable performance, high precision, low power consumption, novel structure. Safe and reliable, it’s an ideal measuring instrument for the majority of users.
- The instrument can measure DC voltage, AC voltage, resistance and connectivity; with non-contact voltage detection function, timely remind the user to pay attention to operation safety, so it’s more safer and rest assured for user to use.
- This manual includes the relevant safety information, warning notices and so on, please read the related contents carefully before using the instrument, and strictly follow all warnings and precautions.
Services
- All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface) , and delivery fee will be borne by customer.
- Material and service fee will be charged when warranty is expired, and delivery fee will be charged .
- To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs .
- Customer can refer the maintenance order to get more information .
Our Target
We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.
R&D Team
Our R&D team have over 20 years R&D experience in instrument industry .
Mission
Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .
